EddyCus® TF portable 1010 Series – Contact Handheld Device for Sheet Resistance, Metal Layer Thickness, Conductivity and Emissivity Measurement

The EddyCus® TF portable 1010 is a handy and portable measurement device for fast contact measurement of large glasses and foils in production or in the field, for example for quick quality checks after manufacturing or as incoming good inspection. The handheld device allows the measurement even of hidden and encapsulated layers. It is an easy-to-use device that is controlled via a touch display.

Highlights

  • Small and portable measurement device
  • Manual measurement
  • Instant live measurement
  • Digital data collection and data transmission via Bluetooth
  • Characterization of hidden and encapsulated conductive layers

Types

Combinations of the variants are available (SR-MT-E)

Ap­plic­a­tions

  • Manual qual­ity con­trol, in­com­ing in­spec­tion, in­spec­tion of out­go­ing goods
  • Con­tact characterization of con­duct­ive materials
  • Single point meas­ure­ment in con­tact (measurement with con­stant dis­tance on re­quest)
  • Planar sur­faces from 150 x 150 mm (setups for 50 x 50 mm and 100 x 100 mm on request)

Areas of Application

  • Architectural Glass (LowE)
  • Mirror Coatings
  • Reflective layers
  • Packaging foils
  • Electrode layers in smart / electrochromic glass and energy storage
  • Battery electrodes
  • Conductive paper and conductive textiles

Soft­ware and Device Con­trol

  • User-friendly user in­ter­face
  • Touch dis­play
  • Di­git­al data track­ing
  • Long bat­tery life­time (ap­prox­im­ately 10h in con­tinu­ous op­er­a­tion)
  • In­stant meas­ure­ment of sheet res­ist­ance and cor­rel­ated prop­er­ties such lay­er thick­ness and emissiv­ity and data aggregation
  • Bluetooth interface
Software sheet resistance measurement EddyCus® TF portable
Handheld Sheet Resistance Tester SURAGUS EddyCus TF Portable
SURAGUS TF portable for sheet resistance testing
GET A QUOTE

Please select your preferred measurement parameter below

Sheet Resistance

Metal Thickness

Resistivity Conductivity

Emissivity

EddyCus® TF portable 1010SR – Handheld Sheet Resistance Tester

The EddyCus® TF portable 1010SR is dedicated to contact sheet resistance measurements in industrial environments. It enables manual quality assurance in various industries.

Data Sheet for EddyCus® TF portable 1010SR

Measurement technology Eddy current sensor
Measurement mode Realtime at constant distance  / contact
Substrates Glass, foils etc.
Substrate sizes Flat samples > 150 mm x 150 mm (6 inch x 6 inch)
Curved editions are available for several applications (windshields etc.)
Measurement spot / high sensitivity zone 40 mm diameter (1.6 inch)
Power Lithium ion battery up to 20 h
Sheet resistance range (five setups available) Type very low:    0.001 – 0.1 Ohm/sq
Type low:             0.04 – 0.1 Ohm/sq
Type standard:        0.3 – 30 Ohm/sq
Type high:               0.3 – 50 Ohm/sq
Type very high:       0.3 – 100 Ohm/sq
Thickness measurement of thin films (e.g. copper) Additional feature, available range is 5 nm – 500 µm (in accordance with sheet resistance)
Emissivity range Additional feature, available range is 0.003 – 0.5
Accuracy (for planar solid surfaces, e.g. glass) 0.001 – 50 Ohm/sq:  < 3%
50 – 100 Ohm/sq:     < 5%
Display 2.8 inch colored touch screen
Device dimensions (w/h/d) 3.5” x 7” x 1.9” / 87 mm x 178 mm x 48 mm
Weight 340 g
Interfaces Bluetooth (optional) + data center



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF portable 1010SR

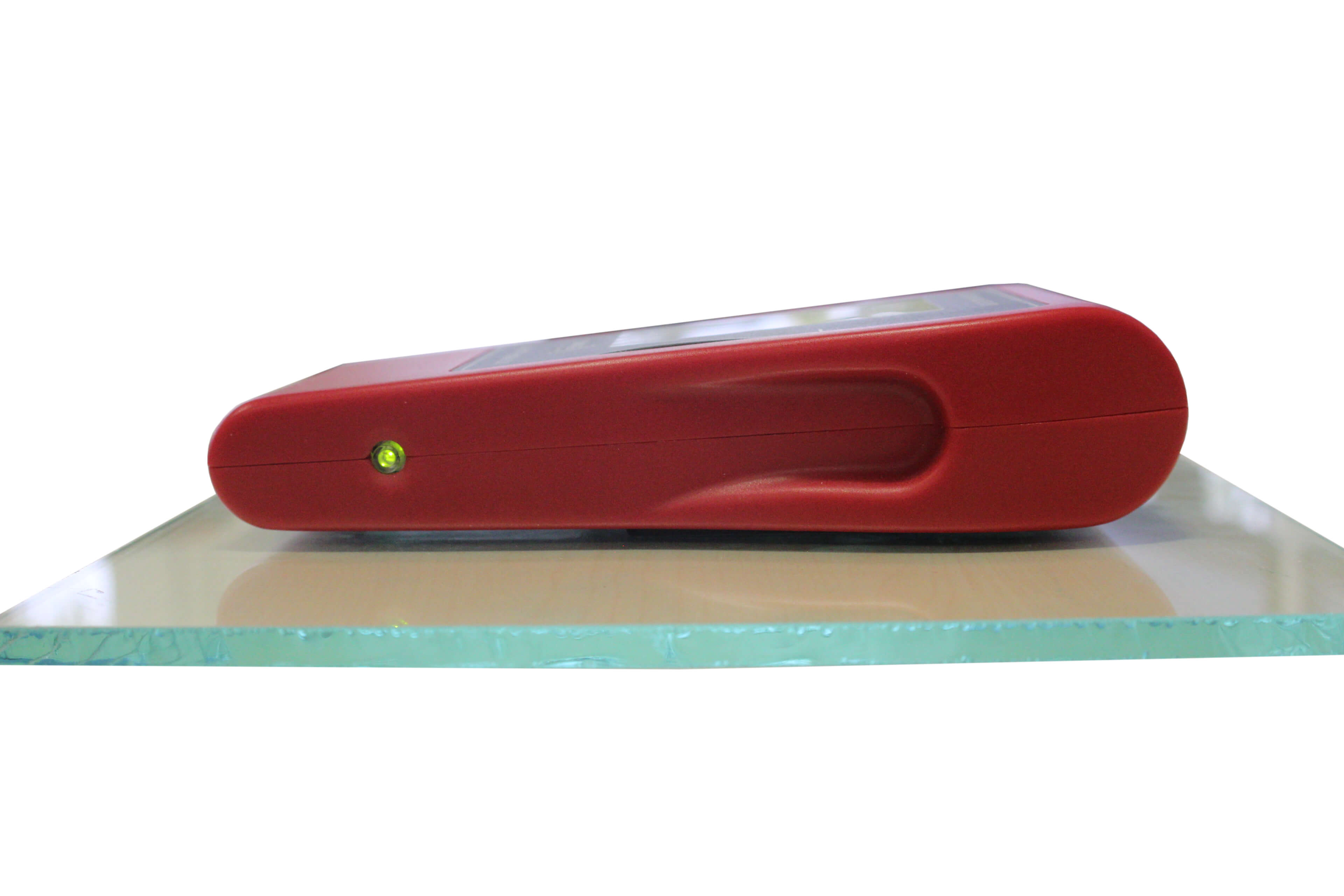

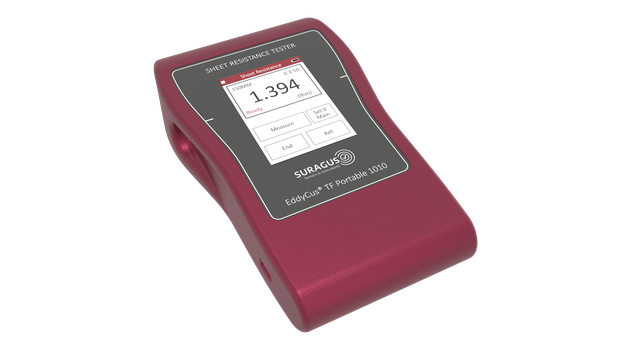

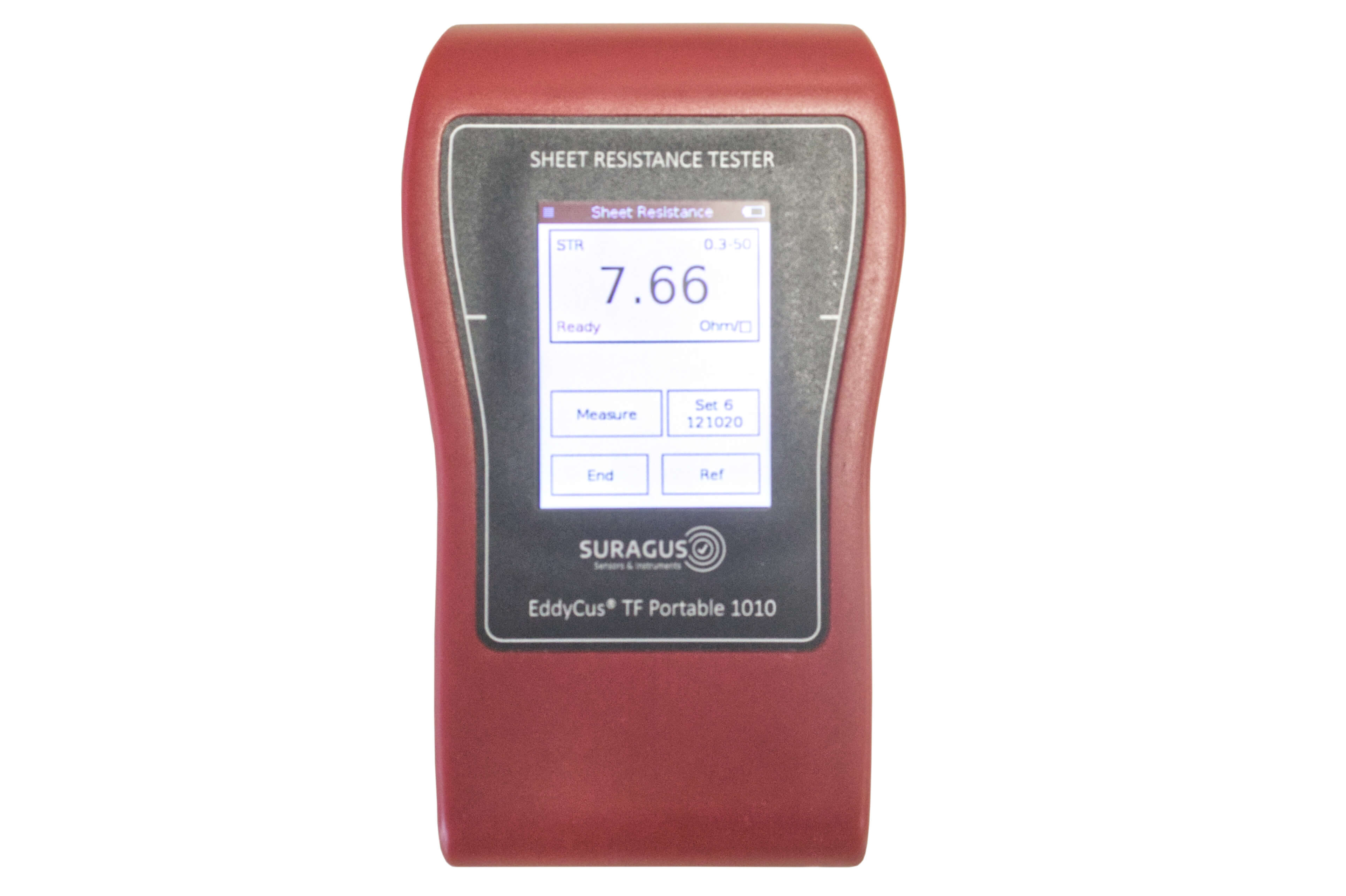

SURAGUS EddyCus® TF portable - Schichtwiderstandsmessgerät
EddyCus® TF portable Schichtwiderstandsmessgerät Rückseite
SURAGUS EddyCus® TF portable Schichtwiderstandsmessgerät Seitenansicht

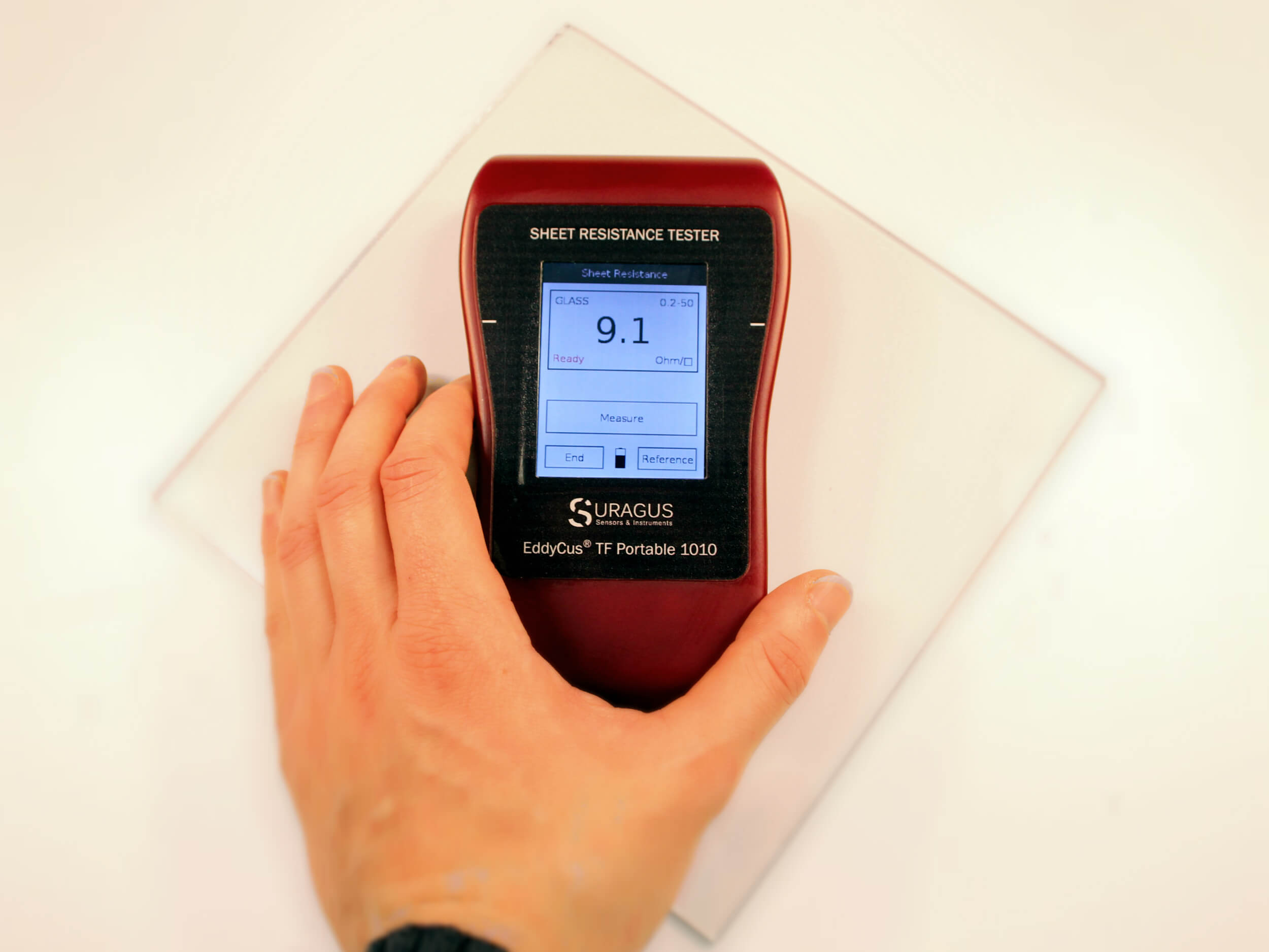

Mobiles Schichtwiderstandmessgerät für Glas und Folien von SURAGUS - EddyCus® TF portable

Product Overview Sheet Resistance Measurement Devices

EddyCus® TF portable 1010MT – Handheld Metal Thickness Tester

The EddyCus® TF portable 1010MT is a contact metal thickness tester dedicated to live thickness testing on coated glass or plastics.

Data Sheet for EddyCus® TF portable 1010MT




Measurement technology Eddy current sensor
Measurement mode Realtime at constant distance / contact
Substrates Glass, plates, foils etc.
Substrate sizes Flat samples > 150 mm x 150 mm (6 inch x 6 inch) Curved editions are available for several applications
Measurement spot / high sensitivity zone 40 mm diameter (1.6 inch)
Power Lithium ion battery up to 20 h
Metal thickness range (four setups available)

very low: 0.001 – 0.1 Ohm/sq
Type low: 0.04 – 0.1 Ohm/sq
Type standard: 0.3 – 30 Ohm/sq
Type high: 0.3 – 100 Ohm/sq

Range depends on material conductivity. Examples:

Cu Al Ag Ti
0.17 – 17 µm 0.27 – 27 µm 0.16 – 15 µm 5.5 – 550 µm
170 – 425 nm 155 – 380 nm 155 – 380 nm 5.5 – 13 nm
0.6 – 56 nm 0.5 – 90 nm 0.5 – 50 nm 0.018 – 1.85 nm
0.4 – 56 nm 0.3 – 90 nm 0.3 – 50 nm 0.013 – 1.85 nm



Sheet resistance measurement Available as additional feature, 5 ranges are available between 0.001 to 100 Ohm/sq
Accuracy (for planar solid surfaces, e.g. glass)  < 3%
Display 2.8 inch colored touch screen
Device dimensions (w/h/d) @ weight 3.5” x 7” x 1.9” / 87 mm x 178 mm x 48 mm @ 340g
Interfaces Bluetooth (optional) + data center

nbsp;

Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF portable 1010MT

SURAGUS EddyCus® TF portable - Schichtwiderstandsmessgerät
EddyCus® TF portable Schichtwiderstandsmessgerät Rückseite
SURAGUS EddyCus® TF portable Schichtwiderstandsmessgerät Seitenansicht
Mobiles Schichtwiderstandmessgerät für Glas und Folien von SURAGUS - EddyCus® TF portable

Product Overview Metal Thickness Testing Devices

EddyCus® TF portable 1010RM – Handheld Resistivity Tester

The EddyCus® TF portable 1010RM is designed for contact resistivity testing and material sorting.

Data Sheet for EddyCus® TF portable 1010RM

Measurement technology High frequency eddy current sensor
Measurement mode Realtime at constant distance / contact
Substrates Ingot
Substrate sizes Flat samples > 150 mm x 150 mm (6 inch x 6 inch)
Curved editions are available for several applications (ingots)
Measurement spot / high sensitivity zone 40 mm diameter (1.6 inch)
Power Lithium ion battery up to 20 h
Resistivity / conductivity range
Type Resistivity Conductivity
Metals and alloys 0.07 – 3 mOhm·cm
3 – 25 mOhm·cm
0.01 – 65 MS/m
SiC 3 – 30 mOhm·cm 0.003 – 0.03 MS/m
Si, GaN, GaAs On request On request
Thickness measurement  Additional feature
Sheet resistance measurement Additional feature, in 5 ranges between 0.001 to 100 Ohm/sq
Accuracy (for planar solid surfaces) < 3%
Display 2.8 inch colored touch screen
Device dimensions (w/h/d) @ weight 3.5” x 7” x 1.9” / 87 mm x 178 mm x 48 mm @ 340g
Interfaces Bluetooth (optional) + data center



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF portable 1010RM

SURAGUS EddyCus® TF portable - Schichtwiderstandsmessgerät
EddyCus® TF portable Schichtwiderstandsmessgerät Rückseite
SURAGUS EddyCus® TF portable Schichtwiderstandsmessgerät Seitenansicht
Mobiles Schichtwiderstandmessgerät für Glas und Folien von SURAGUS - EddyCus® TF portable

Product Overview Resistivity Measurement Devices

EddyCus® TF portable 1010E – Handheld Emissivity Tester

The EddyCus® TF portable 1010E is a non-contact sheet resistance tester extended by a emissivity testing mode for characterization of architecture glass.

Data Sheet for EddyCus® TF portable 1010E

Measurement technology Eddy current sensor
Measurement mode Realtime at constant distance / contact
Substrates Glass, foils, etc.
Substrate sizes Flat samples > 150 mm x 150 mm (6 inch x 6 inch)
Curved editions are available for several applications (windshields, etc.)
Measurement spot / high sensitivity zone 40 mm diameter (1.6 inch)
Power Lithium ion battery up to 20 h
Emissivity range 0.003 – 0.5
Sheet resistance range  Additional feature, 0.3 – 100 Ohm/sq
Thickness measurement of thin films (e.g. silver) Additional feature, 5 nm – 50 nm (in accordance with sheet resistance)
Accuracy (for planar solid surfaces, e.g. glass)  < 3%
Display 2.8 inch colored touch screen
Device dimensions (w/h/d) @ weight 3.5” x 7” x 1.9” / 87 mm x 178 mm x 48 mm @ 340g
Interfaces Bluetooth (optional) + data center
