H2 and CNG Storage

Safety and cost are crucial aspects in high-pressure hydrogen and CNG storage and transportation. High frequency eddy current technology enables a broad spectrum of characterization tasks within the manufacturing process of high-pressure storage and transporation tank manufacturing.

Testing

  • Fiber fuzz detection
  • Fiber breakage detection
  • Splice detection
  • Measuring carbon fiber weight
  • Level of impregnation (resin)
  • Local fiber orientation

Application

  • Inbound quality control of carbon tow
  • Process damage monitoring of carbon fiber roving
  • Resin impregnation via pre & post measurement
  • Outbound quality check of tank layup

Process

  • Filament winding
  • Prepreg winding
  • Towpreg winding
  • Automated fiber placement

Materials

  • Carbon fiber
  • Carbon fiber tow
  • Carbon and glas fiber

Types

  • CNG storage tank
  • Hydrogen storage tank
EddyCus® inline TOW
CF-Yarn and tows can be considered as the raw material of high specialized CFRP.

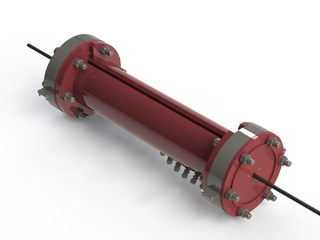

EddyCus® inline WT
Cable, rod or pultruded parts are generally continuous parts, which are manufactured non-stop at a high throughput rate.
EddyEVA Analysis Software
Impedance analyzing software for multiparameter seperation
3D Fiber Orientation – Robot Integration
Scans perpendicular to surface to reveal information on the inner texture such as fiber alignment and gap
