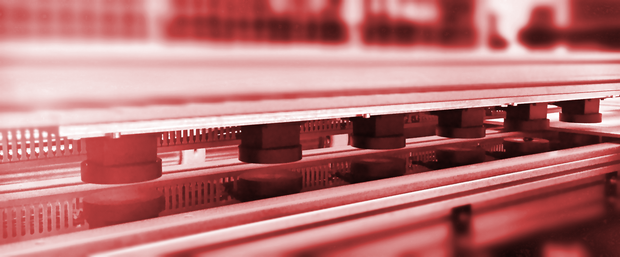

Online process monitoring allows immediate feedback and closed-loop manufacturing of carbon fiber materials. The CF inline FAW provides fiber areal weight data for the continuous roll-to-roll process of recycled carbon fiber, UD-tapes or similar configurations. The solution offers real-time data across the entire width of the web at a competitive price.

Advantages

  • Full-coverage of web width
  • Non-contact measurement for immediate process feedback
  • Suitable for various product configurations
  • Calibration and adjustment can be performed by user
  • Penetration of all layers
  • Applicable to carbon fabrics
  • Presence of binder or matrix irrelevant

Characteristics

  • Determining fiber areal weight of carbon fiber or particles
  • Different sensor size / resolution available
  • High-speed measurement
  • Roll report
  • Standard industrial interface Ethernet
  • Small space requirement/ footprint



Fiber areal weight.jpg

One Tool To Detect Many Quality Parameters – Fiber Areal Weight

The SURAGUS sensors detect two main measured variables. The angle and the strength of the signal. The strength of the signal allows conclusions to be drawn about the amount of material in the direction under consideration. As shown in the picture, a higher amplitude means a higher surface weight and a lower amplitude means less surface weight. Through our sensors, they will not be able to determine the exact basis weight. Our sensors are calibrated to a target value and relate the measured material to the target value.

How well this works depends very much on the composition. If several layers point in the same direction this is challenging for the analysis. The concept works very well in this case, but due to the missing possibility to separate the layers, only the total weight per unit area can be displayed. This leads to the fact that no recommendations for action can be derived to bring the process to the target values. Contact us to evaluate the applicability in your application.






One Tool To Detect Many Quality Parameters – Fiber Orientation Monitoring

Fiber orientation is one of the most important properties of a carbon fiber component loaded in tension. The fiber orientation directly determines the load limit. This is why the correct angle of the bonded plies is so important.

SURAGUS sensors are adjusted and optimized for the angle to be detected. Each angle to be examined receives its own sensor. The distances between the individual sensors are calculated out to obtain a result that is accurate to the point.



CF isotropy.png

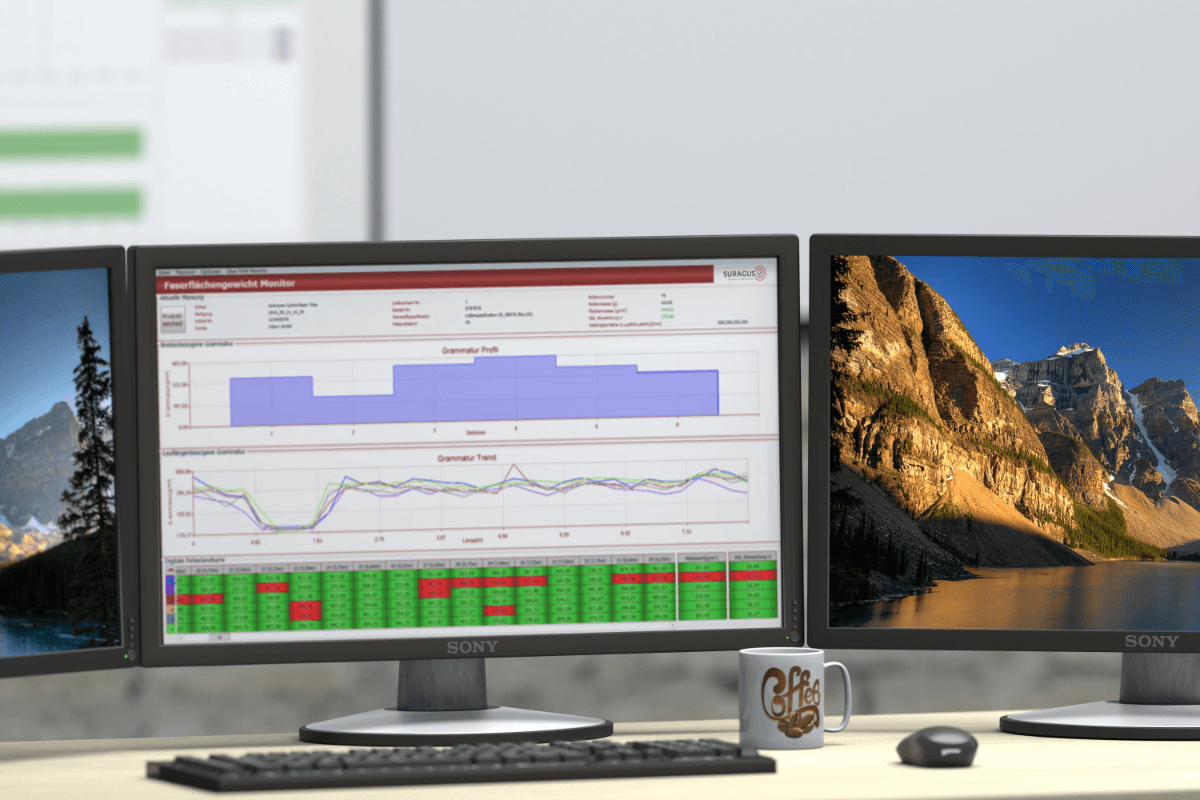

Easy to Use Software

The software is easy to use and clearly displays the recorded values. A report can be created for each roll and can be handed over to the customer as proof of quality.

  • High usability
  • Intuitive design/handling
  • High speed measurement and display of results
  • Data archiving






Demo Measurement To Show Feasibility

To give you an idea of the performance of eddy current technology, we offer you a free demo measurement.

The process goes something like this:

  1. You contact our sales team and describe your application case
  2. We evaluate whether the eddy current technology is suitable for your application
  3. For highly innovative materials a non-disclosure agreement can be made in advance
  4. You send us your samples
  5. We measure your samples
  6. We contact you and discuss the measurement results together






Typical Use Cases of the EddyCus® CF inline FAW

  • Recycled carbon fiber
  • Chopped CF material
  • Continuous fiber material e.g UD Tape
  • Feature Isotropy determination (on customer request)






For more information please watch our data sheet or contact us by email.

Data Sheet for EddyCus® CF inline FAW

Sample rate 1-500 measurements per second
1 measurement/mm @ 200 m/h production speed
Measurement / Scanning area 1-8 sensors across each 100mm in diameter
Web fluttering tolerance 1 mm
Interface e.g. UDP, TCP/IP, Analog IO
Required space Small (approx. 300 mm in production line)
Mode Process control with uplink to PLC or production control system
Quality report
Carbon fiber materials CF non-woven, CF UD-tapes, CF non-crimp fabrics (NCF),
flat CF preforms, conductive coatings
