Printed Electronics

Smart textiles, wearables, IoT and digitalization are major drivers for printed electronics. High throughput deposition requirements demanding industry proved coating metrology, for applications such as:

  • Antennas
  • Various smart tags such as such as radio-frequency identification (RFID) tags
  • Sensors
  • Display and visual effects
  • (Inter)connection solutions
  • OPV
  • Batteries
  • Data Storage

Testing

  • Sheet resistance
  • Line resistance
  • Conductivity
  • Thickness
  • Homogeneity
  • Area weight
  • Drying status

Applications

  • Deposition process control
  • Tempering process control
  • Drying status control
  • Quality control

Substrates

  • Plastics
  • Glass
  • Ultra-thin glass
  • Foil

Processes

  • S2S
  • R2R

Environment

  • In-situ
  • Ex-situ
  • Wet and dry
  • Inline
  • Offline

What Can You Expect From Eddy Current Imaging? Photo Image vs Eddy Current Image

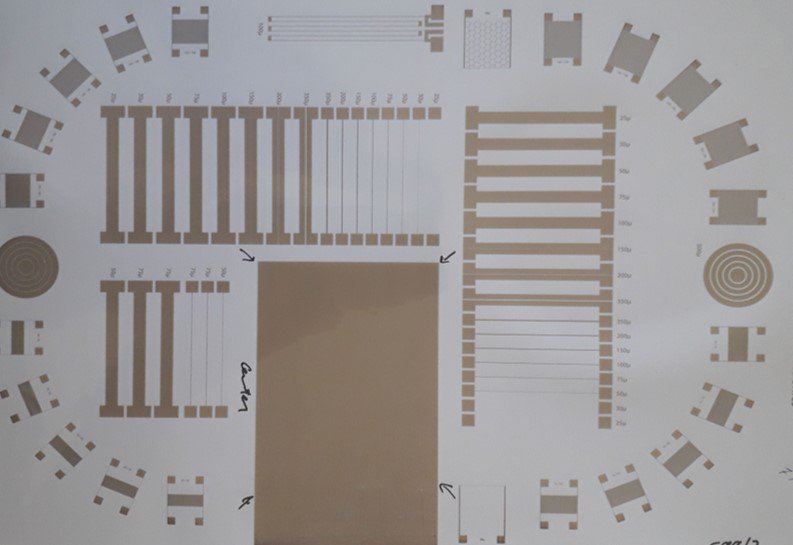

photo of printed test structures.jpg
Photo of Printed Test Structures

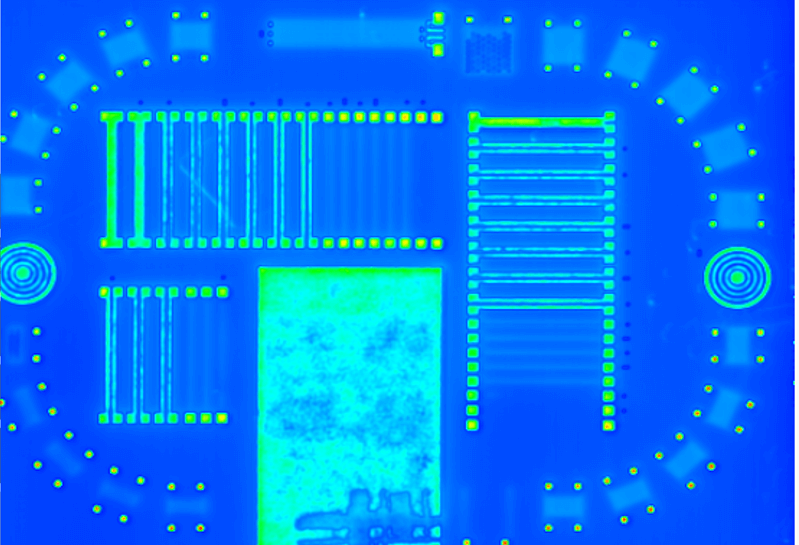

HF eddy current image.png
HF Eddy Current Image

For characterization of deposition processes in printed electronics industry SURAGUS refers to the following products:

EddyCus® lab 2020SR
Non-contact sheet resistance tester for 200 mm samples
EddyCus® inline Sensorline
Inline sheet resistance monitoring system with 8 - 64 sensors
EddyCus® inline SR
Inline monitoring system
