EddyCus® TF map 2525 Series – Non-contact Sheet Resistance, Metal Layer Thickness, Resistivity and Electrical Anisotropy Mapping Device

The Eddy­Cus® TF map 2525 Series auto­mat­ic­ally images characteristics on samples up to 250 x 250 mm² (10 x 10 inches) in non-con­tact mode. Upon manu­al sample po­s­i­tion­ing the device auto­mat­ic­ally meas­ures and dis­plays the distribution of properties across the en­tire sample area. The meas­ure­ment set­tings al­low eas­ily and flex­ibly to choose between fast meas­ure­ment times of be­low 1 minute or high spa­tial meas­ure­ment res­ol­u­tion of more than 50,000 meas­ure­ment points per sample. The resulting mapping provides a true insight to homogeneity and quality of transparent and non-transparent layers or wafer and metal sheets. The bench-top device allows depending of its setup the precise imaging of sheet resistance, metal thickness or optical transparency.

Highlights

  • Non-contact
  • Fast and precise measurement
  • High resolution mapping of conductive thin films
  • Imaging of substrates up to 250 x 250 mm (10 x 10 inches)
  • Defect detection and coating analysis
  • Characterization even of hidden and encapsulated conductive layers
  • Various software-integrated analysis functions (e.g. sheet resistance distribution, line scans, single point analysis)
  • Measurement data saving and export functions

Types

The device platform is available in different sensor configurations including eddy current sensors for electrical characterization or sensors for optical characterization. Variants of the measurement configurations involve the following options.

Combinations of the above variants are available as well (e.g. 2525SR-MT).

Characteristics

  • Technology: non-contact eddy current
  • Imaging by multipoint mapping
  • Thin layer uniformity control
  • Quality control, input and output control
  • Positioning area: 300 mm x 270 mm
  • Sampling area: 250 x 250 mm (extendable to 280 x 280 mm)
  • Recommended sample sizes: 1 inch to 10 inch or 25 to 250 mm
  • Measurements:
    • Sheet resistance: 0.001 to 100 Ohm/sq (Ohm per square, Ohm/sq, OPS)
    • Metal layer thickness: 1 nm to 2 mm (nm, µm, mm, mil)
    • Anisotropy: 0.33 to 3 (MT/TD)
    • Resistivity/Conductivity: (mOhm*cm, MS/m, %IACS)

REQUEST A QUOTE



Software and Device Control

  • Easy setup of measurement
  • Live data collection and analysis
  • Scanning and automated point measurement mode incl. measurement near edge
  • Numerous software integrated analysis functions (histogram analysis, standard deviation, line profiles, area analysis etc.)
  • User-friendly PDF re­port­ing for sys­tem­at­ic doc­u­ment­a­tion (example report)
  • Data export (e.g. txt)
  • Load­ing and reana­lyz­ing data sets

Please select your preferred measurement parameter below

Sheet Resistance

Metal Thickness

Resistivity Conductivity

Electrical Anisotropy

Wet Coating Thickness and Residual Moisture

EddyCus® TF map 2525SR – Non-contact Sheet Resistance Imaging Device

The EddyCus® TF map 2525SR is a non-contact sheet resistance mapping system. The device is equipped with a travelling Eddy Current sensor that measures the sheet resistance on up to 62.500 (250 x 250) measurements points per scan. Since this technology does not require a physical contact to the specimen, the device takes measurements on the fly. Additionally, it excels with high accuracies as it is independent of any contact quality. The high density of measurement points across the sample ensures that no effects or defects are missed. Furthermore, the comprehensive analysis features support a systematic quality assurance of various thin-films in manufacturing and R&D laboratories.

Data Sheet for EddyCus® TF map 2525SR

Measurement technology Non-contact eddy current sensor
Substrates Foils, glass, wafer, etc.
Max. scanning area 10 inch / 254 mm x 254 mm (larger upon request)
Edge effect correction / exclusion 2 – 10 mm (depending on size, range, setup and requirements)
Max. sample thickness / sensor gap 3 / 5 / 10 / 15 mm (defined by the thickest sample)
Thickness measurement of metal films (e.g. aluminum, copper) 2 nm – 2 mm (in accordance with sheet resistance (siehe Schichtwiderstandsrechner))
Scanning pitch 1 / 2 / 5 / 10 mm (other upon request)
Measurement points per time (square shaped samples) 100 measurement points in  0.5 minutes
10,000 measurement points in 3 minutes
Scanning time 4 inch / 100 mm x 100 mm in 0.5 to 3 minutes (1 – 10mm pitch)
8 inch / 200 mm x 200 mm in 1.5 to 15 minutes (1 – 10mm pitch)
Device dimensions (w/h/d) 23.6“ x 9.05“ x 31.5“ / 549 mm x  236 mm x 786(836) mm
Weight 27 kg
Further available features Metal thickness imaging, anisotropy sheet resistance sensor, resistivity/conductivity, material composition
  VLSR LSR MSR
  6 decades are measurable by one sensor, but with slightly affected accuracy
Range [Ohm/sq] 0.0001 – 0.1 0.01 – 10 0.1 – 100
Accuracy / Bias ± 1% ± 1 – 2% ± 1 – 3%
Repeatability (2σ) < 0.5% < 1%
VLSR – Very Low Sheet Resistance , LSR – Low Sheet Resistance , MSR – Medium Sheet Resistance



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF map 2525SR

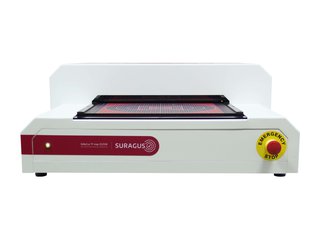

Sheet resistance mapper EddyCus® TF map 2525SR

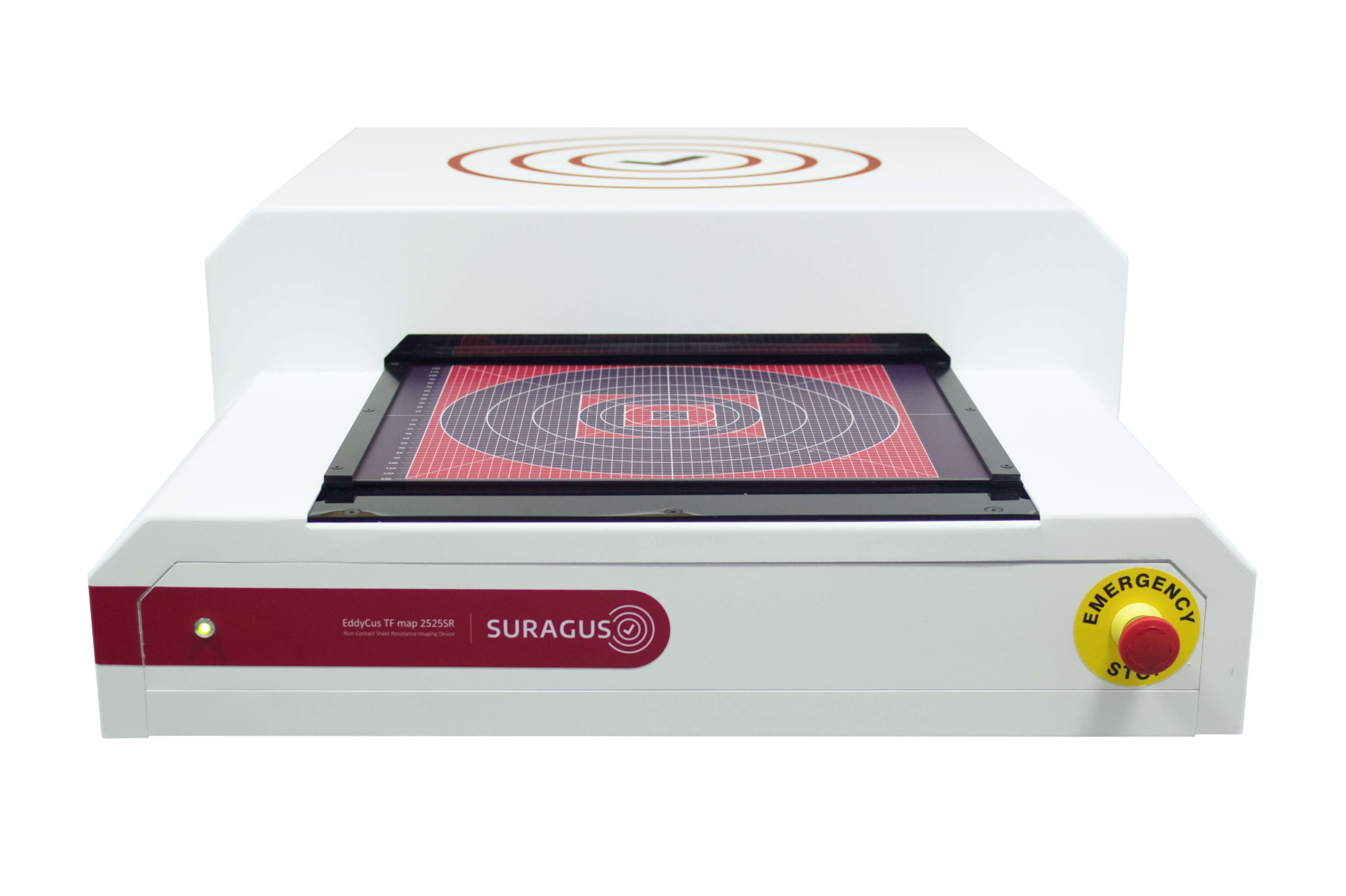

Sheet resistance mapping device EddyCus® TF map 2525SR

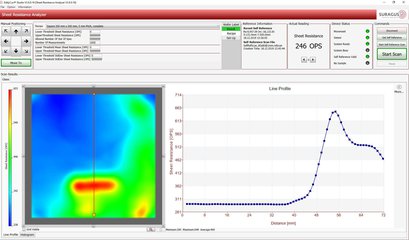

Mapping of sheet resistance EddyCus® TF map 2525SR
Thin-film sheet resistance mapper EddyCus® TF map 2525SR
The non-contact sheet resistance imaging device EddyCus TF map 2525SR loaded with a foil
The non-contact sheet resistance mapping device EddyCus TF map 2525SR loaded with a glass
The non-contact sheet resistance imaging tool EddyCus TF map 2525SR loaded with a coated wafer

Product Overview Sheet Resistance Measurement Systems

EddyCus® TF map 2525MT – Non-contact Metal Thickness Imaging Device

The EddyCus® TF map 2525MT is a non-contact thickness imaging system that operates independent from any optical properties. The device utilizes a non-contact eddy current sensor to determine the thickness of any material with known conductivity or characteristic conductivity profile such as metals or alloys. This non-contact testing technology enables a precise measurement in a wide thickness range starting at a few nanometer thickness reaching up to millimeter range. Additionally, it can also be applied to films that are encapsulated by non-conductive materials. The measurement method is very robust and excels with a high repeatability and high accuracy. Its independency from the optical characteristics is beneficial for various industries that deposit non-transparent metal film. This compact benchtop system is used for a wide range of application for quick tests or systematic quality assurance in manufacturing R&D and testing laboratories.

Data Sheet for EddyCus® TF map 2525MT

Measurement technology Non-contact eddy current sensor
Substrates Wafer, glass, foil, etc.
Max. scanning area 10 inch / 254 mm x 254 mm (larger upon request)
Edge effect correction / exclusion 2 – 10 mm (depending on size, range, setup and requirements)
Max. sample thickness / sensor gap 3 / 5 / 10 / 15 / 25 mm (other upon request)
Metal thickness range
Accuracies depend on the selected setup and the type / conductivity of the metal (e.g. copper, aluminum, silver)
Low             1 – 10 nm; < 5 % accuracy
Standard    10 – 1,000 nm; < 3 % accuracy
High            1 – 100 µm; < 3 % accuracy
Metal thickness calibration Direct thickness calibration / sheet resistance conversion
Scanning pitch (x, y) 1 / 2 / 5 / 10 mm (other upon request)
Measurement points per time (square shaped samples) 100 measurement points in   0.5 minutes
10,000 measurement points in 5 minutes
Scanning time 4 inch / 100 mm x 100 mm in 0.5 to 5 minutes (1 – 10mm pitch)
8 inch / 200 mm x 200 mm in 1.5 to 15 minutes (1 – 10mm pitch)
Device dimensions (w/h/d) 23.6“ x 9.05“ x 31.5“ / 549 mm x  236 mm x 786(836) mm
Weight 27 kg
Further available features / other tool configurations Sheet resistance measurement / conductivity / resistivity / anisotropy / permeability (beta)



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF map 2525MT

Sheet resistance mapper EddyCus® TF map 2525SR
Sheet resistance mapping device EddyCus® TF map 2525SR
Mapping of sheet resistance EddyCus® TF map 2525SR
Thin-film sheet resistance mapper EddyCus® TF map 2525SR
The non-contact sheet resistance imaging device EddyCus TF map 2525SR loaded with a foil
The non-contact sheet resistance mapping device EddyCus TF map 2525SR loaded with a glass
The non-contact sheet resistance imaging tool EddyCus TF map 2525SR loaded with a coated wafer

Product Overview Metal Thickness Testing Devices

EddyCus® TF map 2525RM – Conductivity Mapping and Defect Identification in Thin Films

A variety of materials characteristics determine the conductivity of materials. Next to its composition also its structure and its purity affect the conductivity. The Eddy­Cus® TF map 2525RM is an eddy current mapping system dedicated to high-resolution imaging of conductivity and correlated characteristics exposing material properties, effects and defects. The system can be equipped with various EddyCus sensors for conductivity imaging in high resolution or high penetration and defect detection by use of differential probes. The system supports the creation of images (Eddy Current C-Scans) of the surface with a measurement pitch of 100 µm to 10 mm. The three axis system is capable to scan 2D and 2.5D areas with a size of up to 250 x 250 mm / 10 x 10 inch. Typical applications cover the surface characterization of conductive materials such as SiC-, Graphite-, metal, alloy or steel plates or other conductive semi-finished products. Additionally, the system can be used for testing the electrical integrity of printed electronics and layers.

Eddy current testing allows the quantification of material conductivity [IACS or MS/m] or resistivity [Ohm m or Ohm / mm² / m]. The conductivity of materials provides information on material characteristics such as type of material and homogeneity of the material composition. Next to the direct information on electrical properties, the conductivity also contains information that relate to its thermic properties or its mechanical properties and its structural integrity.

Specification

  • Measurement range: 0.1 – 110 % IACS
  • Specimen sizes: 50 x 50 mm to 250 x 250 mm
  • Shapes: flat and curved surfaces
  • Exchangeable sensors dedicated to specific measurement task
  • Customized specimen holder in terms of layout and shape in favor to specimen dimensions
  • Data analysis, export and reporting functions

Conductivity determination and conductivity imaging provides insights on:

  • Material types and material purities
  • Evaluation of material composition and composition variation
  • Impurities/ dotation
  • Variances in structure and structural integrity
  • Solidification behavior of casted materials
  • Conductivity-affected characteristics such as hardness, stress, grain boundaries and other characteristics

Data Sheet for EddyCus® TF map 2525RM

Measurement technology High frequency eddy current sensor
Materials Wafer, boules, pucks, plates, thin film
Max. scanning area 10 inch / 250 mm x 250 mm (larger upon request)
Edge effect correction / exclusion 2 – 10 mm (depending on size, range, setup and requirements)
Max. sample thickness / sensor gap 3 / 5 / 10 / 25 mm (defined by the thickest sample)
Resistivity range

accuracy can be optimized within a customer specified range
0.002 – 0.1 mOhm cm
0.1 – 100 mOhm cm
100 – 1,000 mOhm cm
Sheet resistance range
accuracy can be optimized within a customer specified range
Low             0.0001 – 10 Ohm / sq; 2 – 5 % accuracy
Standard    0.001 – 100 Ohm / sq; 2 – 5 % accuracy
Scanning pitch 1 / 2 / 5 / 10 mm (other upon request)
Measurement points per time (square shaped samples) 100 measurement points in 5 minutes
10,000 measurement points in 5 minutes
Scanning time 4 inch / 100 mm x 100 mm in 0.5 to 5 minutes (1 – 10 mm pitch)
8 inch / 200 mm x 200 mm in 1.5 to 15 minutes (1 – 10 mm pitch)
Device dimensions (w/h/d) / weight 23.6“ x 9.05“ x 31.5“ / 549 mm x  236 mm x 786(836) mm / 27 kg
Further available features Metal thickness imaging, anisotropy and sheet resistance sensor



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF map 2525RM

Sheet resistance mapper EddyCus® TF map 2525SR
Sheet resistance mapping device EddyCus® TF map 2525SR
Mapping of sheet resistance EddyCus® TF map 2525SR
Thin-film sheet resistance mapper EddyCus® TF map 2525SR
The non-contact sheet resistance imaging device EddyCus TF map 2525SR loaded with a foil
The non-contact sheet resistance mapping device EddyCus TF map 2525SR loaded with a glass
The non-contact sheet resistance imaging tool EddyCus TF map 2525SR loaded with a coated wafer

EddyCus® TF map 2525A – Non-Contact Electrical Anisotropy and Sheet Resistance Imaging Device

The EddyCus® TF map 2525A (Anisotropy) is a unique anisotropy imaging system providing spatially resolved anisotropy images for profound understanding of the dominant orientation in wire structures. It utilized eddy current sensors that induce currents into defined directions. The resulting image shows the dominating wire direction, the anisotropy strength and the resulting sheet resistance. This unique tool is valuable for the characterization of wire structures such as Silver Nano Wires (Ag-NW), CNT, metal grids or nano-rod structures. Intentional anisotropic nanowires provide a better sheet resistance to optical transparency performance compared to isotropic nano-wire electrodes with opposite contact structure. This non-destructive testing method saves time and ensures that the wire deposition process provides the required orientation and resistance. This tool can be applied for quick quality checks or systematic quality assurance.

Terms and concept

  •  “Sheet resistance anisotropy” refers to a difference in electrical resistivity measured parallel and perpendicular (traverse) to the machine direction
  • Many wire and mesh structures can have an anisotropic sheet resistance

Electrical anisotropy…

  • …can be optimized according to the layout of the contact pattern
  • …can save material and improve optical transparency to sheet resistance ratio



Data Sheet for EddyCus® TF map 2525A

Measurement technology Non-contact eddy current sensor with directed current induction
Substrates Foils, glass, wafer, etc.
Max. scanning area 10 inch / 254 mm x 254 mm (larger upon request)
Max. sample thickness / sensor gap 3 / 5 / 10 / 25 mm (defined by the thickest sample / application)
Sheet resistance range 0.01 –­­­­ 100 Ohm/sq; 1 to 5 % accuracy
Anisotropy range (TD/MD) 0.33 –­­­ 3 (larger upon request)
Scanning pitch 1 / 2 / 5 / 10 mm (other upon request)
Measurement points per time (square shaped samples) 10,000 measurement points in 5 minutes
1,000,000 measurement points in 30 minutes
Scanning time 4 inch / 100 mm x 100 mm in 0.5 to 5 minutes (1 – ­­­­10mm pitch)
8 inch / 200 mm x 200 mm in 1.5 to 15 minutes (1 – ­­­­10mm pitch)
Device dimensions (w/h/d) 23.6“ x 9.05“ x 31.5“ / 549 mm x  236 mm x 786(836) mm
Weight 27 kg
Further available features Metal thickness, sheet resistance, resistivity imaging



Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF lab 2525A

Sheet resistance mapper EddyCus® TF map 2525SR
Sheet resistance mapping device EddyCus® TF map 2525SR
Mapping of sheet resistance EddyCus® TF map 2525SR
Thin-film sheet resistance mapper EddyCus® TF map 2525SR
The non-contact sheet resistance imaging device EddyCus TF map 2525SR loaded with a foil
The non-contact sheet resistance mapping device EddyCus TF map 2525SR loaded with a glass
The non-contact sheet resistance imaging tool EddyCus TF map 2525SR loaded with a coated wafer

Product Overview Electrical Anisotropy and Sheet Resistance Measurement Systems

EddyCus® TF map 2525HF – Non-contact Wet Coating Thickness and Residual Moisture Imaging Device

The EddyCus® TF 2525HF is a high frequency eddy current mapping device designed for material and thin-film characterization. The device is sensitive to characteristics that correlate with electric, dielectric and magnetic properties. Typical applications include the assessment of material composition, the measurement of residual moisture, wet coating thickness or permittivity, and the determination of the content level of conductive (e.g. C, Pt) or magnetic (e.g. Co) materials. SURAGUS also supports complex impedance analysis to derive information on electrical, dielectric or magnetic properties from hybrid materials with a single measurement. The exact capabilities regarding specific measurement tasks can be provided from a consultation with the SURAGUS team.

Data Sheet for EddyCus® TF map 2525HF

Measurement technology Non-contact high frequency eddy current sensor
Substrates Foils, glass, various containers
Max. scanning area 10 inch / 250 mm x 250 mm (larger upon request)
Edge effect correction / exclusion 2 – 10 mm (depending on size, range, setup, and requirements)
Max. sample thickness / sensor gap Transmission setup: 3 – 50 mm (defined by the thickest sample) Reflection setups: infinitive (only surface area is analyzed)

Measurement types

Wet thickness (µm) / weight (g/m²) / drying status (%) /
conductivity (MS/m) / resistivity (mOhm cm) / permeabilty (H/m) Beta
Measurement range / accuracy Depends on the measurement task and the material composition and test object volume. Please consult the SURAGUS team
Scanning pitch 1 / 2.5 / 5 / 10 / 25 mm (other upon request)
Measurement points per time (square shaped samples) 100 measurement points in 0.5 minutes
10,000 measurement points in 5 minutes
1,000,000 measurement points in 30 minutes
Speed 400 mm per second (time 1 to 30 minutes)
Device dimensions (w/h/d) 23.6” x 9.05” x 31.5” / 549 mm x 236 mm x 786(836) mm
Weight 27 kg
Further available measurements Sheet resistance, metal thickness and anisotropy imaging

Contact Us

You are welcome to contact our team for

  • Addressing questions
  • Request demo measurements
  • Request online or live demonstrations
  • Request quotations

CONTACT US

Picture Gallery of the EddyCus® TF map 2525HF

Sheet resistance mapper EddyCus® TF map 2525SR
Sheet resistance mapping device EddyCus® TF map 2525SR
Mapping of sheet resistance EddyCus® TF map 2525SR
Thin-film sheet resistance mapper EddyCus® TF map 2525SR
The non-contact sheet resistance imaging device EddyCus TF map 2525SR loaded with a foil
The non-contact sheet resistance mapping device EddyCus TF map 2525SR loaded with a glass
The non-contact sheet resistance imaging tool EddyCus TF map 2525SR loaded with a coated wafer

Product Overview Wet Coating Thickness and Residual Moisture Measurement Systems

Contact

For product requests contact us by using the

For a prompt and informative response, please describe your measurement task (material, sample dimensions, expected measurement range) and provide your phone number.

Consent to data processing

By sending this form, I permit SURAGUS GmbH to process my data for contacting me. For more details see our Imprint & Privacy Policy
